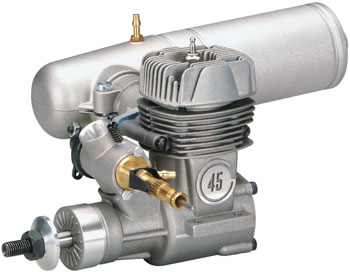

GS45 ABC Sport Engine from SuperTigre.
FEATURES: ABC cylinder and piston. Two crankshaft ball bearings
Schnuerle porting A NEW silent muffler One-piece crankcase A
twin-needle throttled carburettor 3-year warranty
INCLUDES: One Glow Plug One Silent Muffler with Header One Set
Operating Instructions One parts list One Set SuperTigre Decals
SPECS: Bore: 21.85mm (.860") Stroke: 20mm (.787") Weight w/o
muffler: 377g (13.22oz) Weight with muffler: 524g (18.5oz)
Displacement: .46 cu in (7.5cc) Power Output: 1.45 BHP at 16,000 RPM
RPM Range: 2,500-16,000 Width between centers of mounting holes:
42mm (1.65") Length between centers of mounting holes: 19mm (.75")
Width of crankcase excluding mounting flanges: 34mm (1.34") Length
from backplate to front of drive washer: 83mm (3.15") Height from
bottom of crankcase to top of head: 85mm (3.35") Crankshaft Thread
Size: 1/4-28 Suggested Props: 10X6 or 9.5X6 10X7 for break-in |
