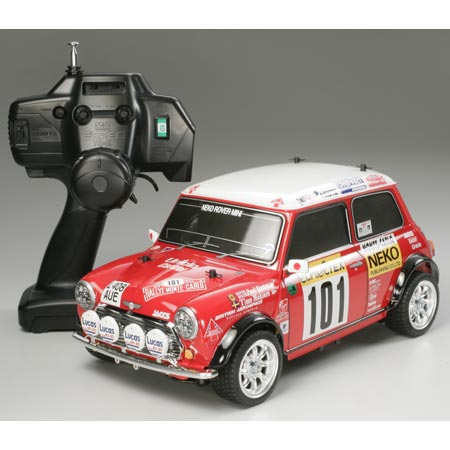

Tamiya Mini Cooper '94 Monte Carlo Series on-road Car.
Electric 1/10 scale ready to run. Part of Tamiya's XB (Expert Built) series.
Trimmed & painted w/ sponsor decals from the '94 Monte Carlo race.
FEATURES:
Chassis: Plastic tub M-03
design Drive: Front wheel
Radio: Tamiya TTU-03 AM
pistol-grip w/servo reverse,
steering and throttle trims
and standard servo Motor:
540 motor with pre-attached
leads Ball Bearings:
Installed in differentials,
bushings in wheel hubs
Shocks: Friction, plastic
body Gearbox: Enclosed
Differentials: Bevel gear,
ball bearing equipped
Transmission: Single speed
Body: 0.03" (0.8mm)
polycarbonate, painted and
trimmed Tires: 2.6" (66mm)
outer diameter 1" (26mm)
wide racing radial type
Wheels: Silver 8-Spoke 1.5"
(38.7mm) outer diameter
Speed Control: TEU-101BK
electronic, w/reverse &
standard connector Bumpers:
Front and rear, rigid
plastic Suspension: Fixed,
non-adjustable Camber Tie
Rods: Fixed, non-adjustable,
(Camber refers to the angle
at which the wheels sit
vertically) Steering Tie
Rods: Adjustable
(Caster/Toe-in refers to the
angle at which the wheels
point inward as viewed from
above) Steering: Bell-crank
type Servo Saver: Included
INCLUDES:
Tamiya Mini Cooper on-road
car, pistol-grip
transmitter, receiver, 540
motor, ESC, painted body,
tires, foam bumper, spoke
wheels 20 tooth pinion gear,
spur gear, tube of grease,
wheel wrench and
instructions
SPECS:
VEHICLE- Length: 11.3"
(389mm) Width: 6" (152mm)
Height: 5.6" (143mm) at rear
body mount Weight: 2.2lbs
(990g) kit only 3.3lbs
(1490g) with battery, speed
control, motor and radio
equipment (approximate)
Wheelbase: 8.1" (207mm)
Tread: Front-and Rear 5.5"
(140mm) Tires, F&R: Overall
Diameter, 2.2" (55mm)
Overall Width, 0.96"
(24.5mm) Inner Bead
Diameter, 1.5" (39mm) BODY-
Length: 12.5" (319mm) Width:
6.1" (155mm) Height: 4.75"
(121mm)
|
